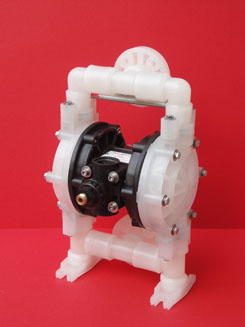

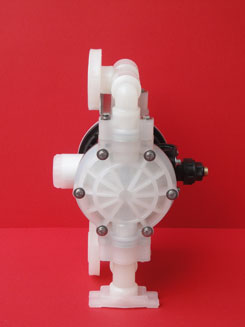

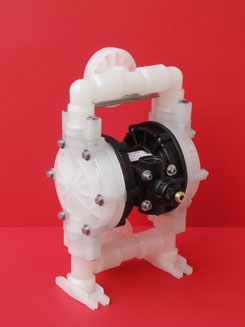

PPDM 60 is a pump with a double membrane operated by compressed air. This pump is built out of polypropylene. The membrane, depending on the usage, can be NBR, EPDM, NBR for food industry, NR for food industry, Viton и PTFE.
- it’s ideal for aggressive, abrasive or fluids with high viscosity
- it can run endlessly in dry mode
- if the output is blocked, there is no danger to the pump
- no maintenance is needed
- no danger of explosion |
 |
Dimensions
Height
Width
Length
Weight
Air pressure
Input strength
Output strength
|
.
382 mm
225 mm
250 mm
4.1 kg
3/8”
22 mm
22 mm |
|
Performances
Maximal throughput
Maximal pressure (air)
Maximal input height in dry mode
Maximal input height in wet mode
Maximal pressure height
Maximal size of particles
Maximal operating temperature
|
.
120 lpm
8 bar
4.2 m
8 m
50 m
3.5 mm
85 C |
Built materials
Pump head and vents: polypropylene
Vent ball: PTFE, 304 SS
Slot of the vent ball: polypropylene, 304 SS
Membranes: NBR, EPDM, NBR for food industry, NR for food industry, Viton и PTFE |
|
